Finishing Gear Hob with Basic Profile DIN3972-Ⅰ
2021-10-23 08:49:42
jiangxingTools
3502
Finishing Gear Hob with Basic Profile DIN3972-Ⅰ
for spur and helical gear to module pitch

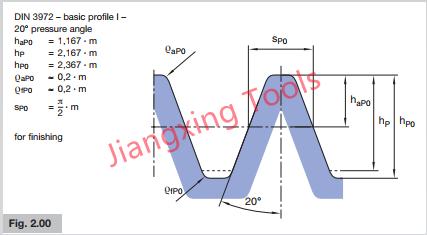

basic hob profile Ⅰto DIN 3972
pressure angle: 20°
for finishing cut
we are supplying solid mdoule gear hob with standardized basic profiles to DIN 3972, DIN58412, please contact us for more details on hobs.
