GB STD Disk Type Straight Tooth Gear Shaper Cutter
2021-10-16 10:20:46
jiangxingTools
3307

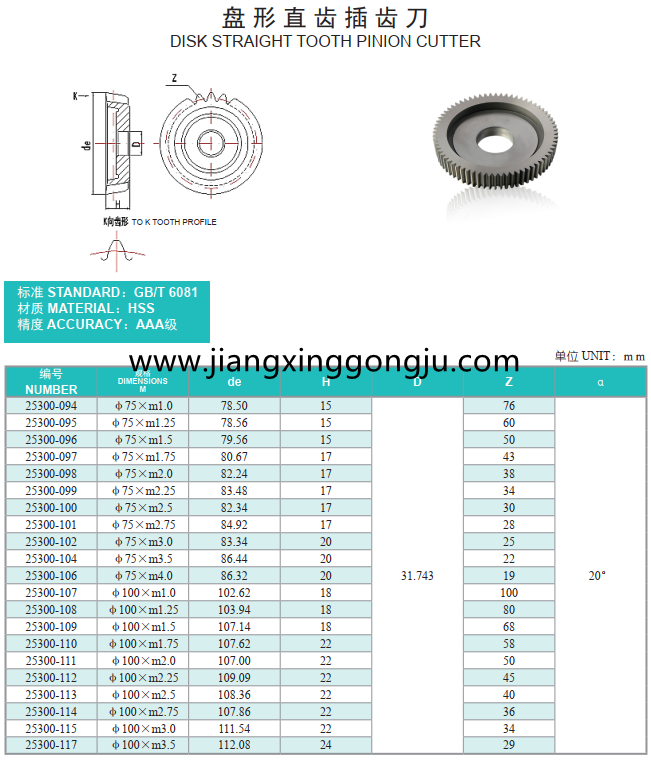

GB STD Disk Type Straight Tooth Gear Shaper Cutter
Module: m1-m8,PA20
Profile to GB standard
Material: HSS M2, M35
Accuracy: Class A, AA
More module and dp disk type gear shaper cutters can be ordered according your needing.
